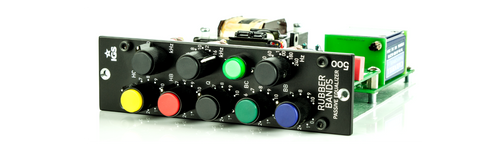

- IGS Audio Rubber Bands EQ - Black
Product Description
Rubber Bands 500 is a passive equalizer absurdly reduced in size. This tiny module is equipped with transformer balancing on inputs and outputs (Carnhill) as well as a discrete power circuit. Of course the entire filtering section is passive and mirrors fully analogue equalizers from the 60s.
Front Panel:
- Potentiometers: * HC (High Cut), * HB (High Boost), * Q, * HC (High Cut), * HB (High Boost)
- Switches
* HC: 6, 10, 20 kHz;
* HB: 5, 6, 10, 12, 16 kHz;
* BBC: 20, 40 , 60, 100, 180, 240 Hz.
- EQ IN – relay Bypass
Technical specifications:
- API 500 standard module
- Passive Equalizer
- Input impendance:1kO – Carnhill transformer balanced
- Output impendance:600kO – Carnhill transformer balanced
- Max input level: +20 dBu
- Max output level: +22 dBm
- Band amplification: +18 dB
- Harmonic distortion THD: up to 0,1%
- Frequency response: +/- 0.1 dB 20Hz do 20kHz
- Signal-noise: over 99 dB
- Power supply: +/- 16V
- Current consumption: 70mA
Front Panel:
- Potentiometers: * HC (High Cut), * HB (High Boost), * Q, * HC (High Cut), * HB (High Boost)
- Switches
* HC: 6, 10, 20 kHz;
* HB: 5, 6, 10, 12, 16 kHz;
* BBC: 20, 40 , 60, 100, 180, 240 Hz.
- EQ IN – relay Bypass
Technical specifications:
- API 500 standard module
- Passive Equalizer
- Input impendance:1kO – Carnhill transformer balanced
- Output impendance:600kO – Carnhill transformer balanced
- Max input level: +20 dBu
- Max output level: +22 dBm
- Band amplification: +18 dB
- Harmonic distortion THD: up to 0,1%
- Frequency response: +/- 0.1 dB 20Hz do 20kHz
- Signal-noise: over 99 dB
- Power supply: +/- 16V
- Current consumption: 70mA
Warranty Information
Comes with Manufacturer's 3 Year Warranty
