Pinnacle Fat Top II Brown Lundahl Stereo Pair

The Fat Top II is a short ribbon passive microphone that delivers a smooth, warm, rich, fat, rounded tone. Produces a well-rounded sound without the need to EQ out the brittle or sharp highs. This microphone will roll off the high frequencies that will help with perceived warmth. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces, ideal for isolating sound sources. It’s frequency and sensitivity response deliver pristine audio results. Translates natural analog sound into the digital domain, giving warmth and smoothness to what might be a cold and sterile digital recording. Versatile enough to handle any vocals or instruments in recording and live sound application. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling. Best suited for guitar cabinets, piano, brass and percussion instruments.

Specifications:

Type: Ribbon (velocity) Microphone

Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)

Polar Pattern: Symmetrical Figure 8

Sensitivity: -54.4 dB (1.5 (mV/Pa)

Frequency Response: 30 to 15 KHz (+/- 3dB)

Impedance: <=200 Ohms

Recommended Load Impedance: 1000 Ohms

Max.SPL (1% THD @1000 Hz): 135 dB

Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB

S/N ratio: re 1Pa: 70 dB

Connector: 3-Pin Male XLR

Size: Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)

Transformer: Standardly fitted with LL2913 Lundahl Transformer

Sequential serial numbers are not an indication of a matched pair. Stereo pairs are built and assembled by our technicians. The exterior sleeve put on the microphone for serial number tracking does not indicate if they are a matched pair. If you would like to special request the serial numbers to be sequential, please be sure to add that to your notes on the checkout option.

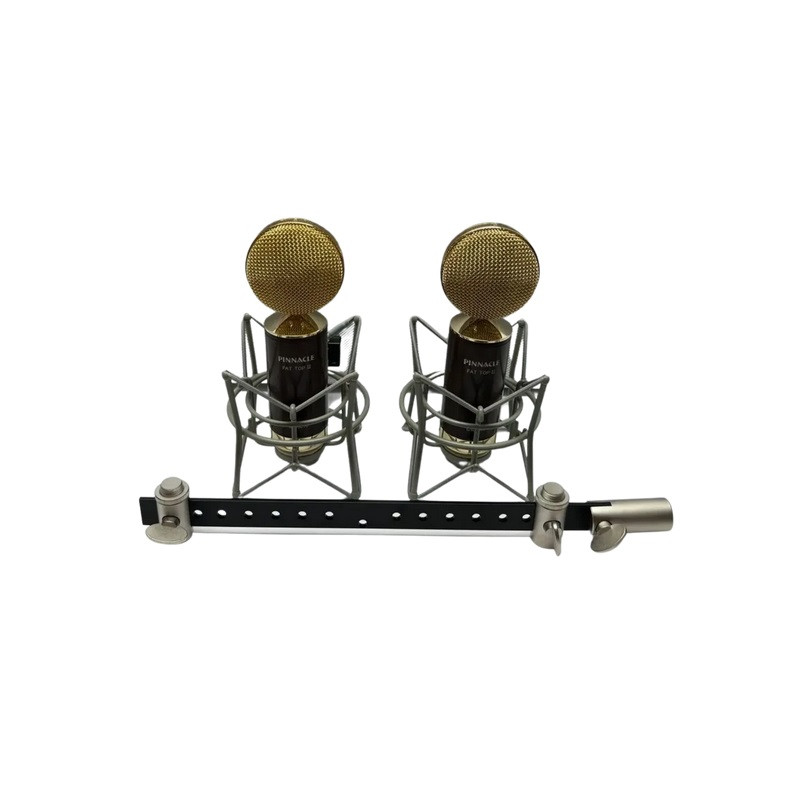

Includes: (2) Fat Top II Brown Ribbon Microphone w/Lundahl, (2) Shock Mounts,  (1) Blumlein Bar , (1) Alum. Case
