Buzz Audio VELOX-IC
Dual channel legacy optical compressor with integrated circuit signal path.

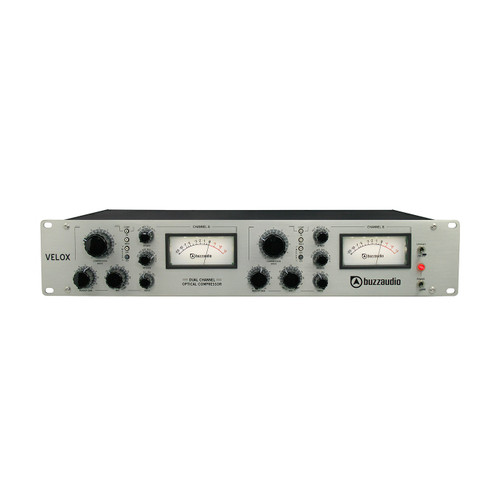

Available in either Black or Gray front panel. (See photos)
We first manufactured the SOC-1.1 in 1999 and it brought to the market an optical (light dependant resistor) compressor with more user control than what was available at the time (LA series for example). The unit was emmensly popular and we built hundreds of them, but the construction was a bit messy and time consuming to build, so we recently retired the SOC-1.1 and have replaced it with the Velox!
So the Velox sports the same amazing compression character of the original SOC-1.1 but we have added a MIX control so you can blend the input signal with the compressor output, and we have installed a BASS filter into the side chain to reduce the sensitivity of the compressor at low frequencies. We have also introduced more options to cater for your budget. The entry level Velox is available with high quality Texas Instrument audio opamps or you can opt for the high end Class A discrete transistor BE41 amplifiers. In addition we offer an optional Lundahl LL1517 transformer output that can be fitted to both versions.
The Velox is very easy to use for recording individual tracks or on the stereo mix buss because of the "soft knee" characteristic. The AUTO attack and release settings have been perfected to provide natural compression and in many cases that's all you will ever need for acoustic or vocal work. The MIX control allows you to use the 20:1 (virtually brick wall limiting) compression and blend that with the input for more "heavy" sounds - the options are virtually endless - but what ever you choose works!.
The same compressor characteristic as the original SOC-1.1 but with additional features.
Optional fully discrete transistor Class A or integrated circuit signal path.
Smooth soft knee compression - does not dig holes in your tracks.
Mix control for blending the uncompressed and compressed signal further enhances the ratio selections.
Side chain high pass filter (bass mode) for more bass punch on full mixes.
Boutique hand made with loving care in New Zealand.
All high quality components and controls to last a life time.
To cater for your price range, we offer the Velox in two versions. The IC version uses nice Texas Instrument high end integrated circuit opamps in the signal path or you can opt for the DC version which utilises our Buzz Audio BE41 discrete opamps. Both versions can be supplied with a silver or black face plate. In addition, a Lundahl LL1517 output transformer can be fitted and this feeds the second set of output XLR's on the rear panel.
controls and functions
DRIVE - turning it clock wise increases compression, which is way more sensible than counter clock wise!
MAKEUP - variable control that adds up to 15dB gain after the compressor section to correct for lost level.
MIX - variable control that allows you to mix between the input signal and the compressor output (post the makeup control).
COMP IN - Push button switch to bypass or engage the compressor, (hard wire bypass).
BASS - Push button switch that engages a high pass filter into the side chain to reduce the sensitivity of the compressor at low frequencies.
METER G.R./O.P. - Push button switch to select the display on the VU meter of the amount of gain reduction or the output level.
ATTACK - rotary switch with FAST (1mS) 25mS, 50mS selections plus our excellent AUTO mode.
RELEASE - rotary switch selects recovery time of 100mS, 200mS, 400mS, 800mS, 1600mS and a superb AUTO mode.
RATIO - rotary switch with 4 settings for depth of compression, 2:1, 5:1, 10:1, 20:1.
There is also a handy power ON/OFF switch and a channel A/B LINK switch which soft links the sidechain circuit, useful when used on stereo mixes.
Mains Voltage; 110-115Vac or 220-240Vac switchable.
Weight; 4.1 kg net, 6.8kg shipping.
standard product warranty
Buzz Audio guarantees the Product to be free of defective materials and/or workmanship for a period of 1 year (12 months) from the date of sale, and will replace defective parts and repair malfunctioning Products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory (or duly authorised service centre) via prepaid transportation with a copy of the proof of purchase, ie, sales receipt. This warranty provides that examination of the returned Product must indicate, in our judgement, a manufacturing defect. This warranty does not extend to any Product that has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. The standard warranty is not transferable to a new owner should the Product change hands during the 1 year period.
product warranty extension
The Standard Product Warranty may be extended to a period of 2 years (24 months) from date of sale provided the Product is registered with us within 4 weeks (28 days) from the purchase date. The extended warranty is transferable to a new owner should the product change hands within the 2 year period.
