  • Matched Pair of MA-201fet - www.AtlasProAudio.com

Mojave Audio MA-201FET Matched Pair

$1,440.00
SKU:
MA201FETMP
Availability:
Special Order. Usually ships in 1-3 days
Shipping:
Free Shipping
Quantity:

Product Description

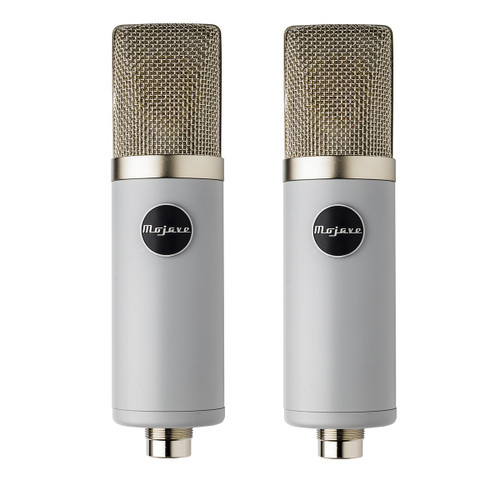

A Factory Matched Pair of Mojave MA-201fet Condenser Microphones



The MA-201fet is a large diaphragm, phantom-powered, solid-state condenser microphone with a fixed cardioid pattern. With its roots in a lineage of microphone designs by David Royer, the MA-201fet gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.



Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-20fet performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-201fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.



Features:

  • Hand-selected 3-micron 1" capsule
  • Jensen audio transformer
  • Military-grade FET
  • Custom designed low-noise resistors
  • Ultra clean signal path

Recommended applications:

  • Vocals
  • Voice Over and Broadcast
  • High SPL sources, such as Kick Drums and Bass Guitar Amps
  • Electric Guitar
  • Piano
  • Drum Overheads, Drum Rooms
  • Acoustic Instruments


TECHNICAL DATA

TRANSDUCER TYPE: Externally polarized pressure gradient capacitor

DIAPHRAGM: 1-inch diameter, gold sputtered

DIAPHRAGM THICKNESS: 3-micron

POLAR PATTERN: Cardioid

FREQUENCY RESPONSE: 20 Hz-20kHz, +/- 3dB

SENSITIVITY: -39 dB re. 1V/pa

MAXIMUM SPL: 125 dB

DISTORTION: <1% @120dB SPL, <3% @134dB SPL

SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)

IMPEDANCE: 550 ohms, transformer balanced (Jensen)

POWERING: 48VDC phantom power; current .68mA.

DIMENSIONS AND WEIGHT:
Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs.
Microphone: 7 5/8" x 2", 1 lb.

Product Videos

Pro Drummer Kenny Aronoff Talks Mojave Microphones 01:11

Kenny Aronoff goes over his mic set-up on his kit at uncommon Studios.

  • Pro Drummer Ke...
    Kenny Aronoff goes over his mic set-up on his kit at uncommon ...

Warranty Information

Comes with 2 Year Manufacturer's Warranty
