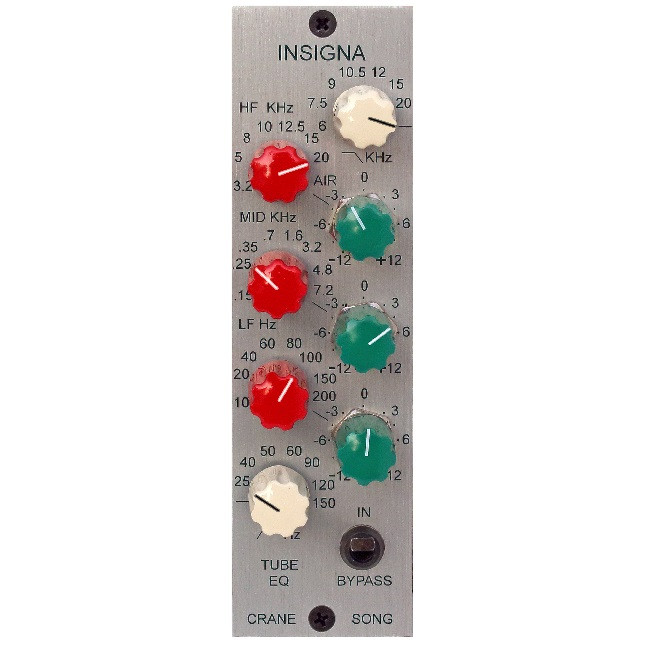

Crane Song Insigna
500 Series Tube Equalizer
a coloring / shaping eq
with 3 bands, plus
Hi cut and Low cut filters
INSIGNA is a tube equalizer in a 500 series package, using a dual triode circuit with a 12AX7 tube.
The eq has 24 db/oct high pass and low pass filters each with 7 frequencies.
The top and bottom band are shelving each with 8 frequencies
The mid band is peaking with 8 frequencies.
The three bands work by using buffered RC circuits in the negative feedback path around the tube amplifiers.
The result is a fat sounding eq rich in second harmonic triode tube color.
Comes with manufacturer's warranty.
