Crane Song Flamingo

Flamingo
Stereo Mic Preamp

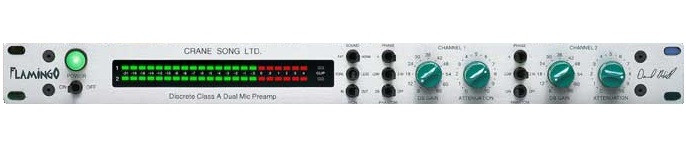

FLAMINGO, is a high quality two channel discrete class A microphone pre-amp. It can be operated as a musically
transparent pre-amplifier, but is capable of emulating vintage sounds as well as creating distinctive new
ones.

The input gain is selected by a stepped switch for gain matching and repeatability. This is followed by a
continuously variable attenuator to provide gain trim. Gain is adjustable in 6 db steps to 66 db gain and down
to off by the attenuator. Each channel has independently switchable phase and phantom power switches. FLAMINGO
also contains a two channel 22 element VU meter with an over load indicator to allow accurate monitoring and
ease of level adjustment.

Unique to FLAMINGO are three switches that allow the user to select different sounds; these are the IRON,
SOUND and TONE switches. The SOUND switch changes the type of amplifier and the IRON switch puts iron in the
audio path. The TONE switch, a 3 position switch, allows for standard - (the original Flamingo sound) when the
switch is in the center position, when moved to the right, Flamingo operates as a transparent preamp, and when
the switch is in the left most position, it has more color. Needless to say, by using these switches FLAMINGO
can produce many different combinations of sounds.

Also added to Flamingo is an input impedance switch. Providing 2 choices, the first is the original Flamingo;
the second is to match large diaphragm condenser mics as recommended by David Bock, of Bock Audio. It also has
transformer-less balanced inputs and outputs.

FLAMINGO is designed to be flexible and give the user a tool to solve real world recording, broadcast, and
sound reinforcement problems. It can provide an artistic choice of sounds at the flip of a switch.
