  • Buzz Audio REQ2.2 Mastering Edition - AtlasProAudio.com

Buzz Audio REQ2.2 EQ - Mastering

$7,500.00
SKU:
REQ2.2ME
Availability:
Special Order. Currently 5-7 week lead time, check with us for specific ETS.
Shipping:
Free Shipping
Quantity:

Product Description



REQ2.2 Mastering Edition

The REQ is available in a mastering or recording version with different boost/cut ranges as noted above. The High Pass Filter section of the mastering version has a softer slope (12dB/oct) compared to the recording version (18dB/oct) and the cutoff frequencies are more applicable to the mastering process.

The mastering version Boost/Cut control is a 23 postion Elma switch with a range of +/-8dB.





design features

A high end stereo four band inductor based parametric mastering equaliser, that operates and sounds like no other.

the resonance factor

Instead of active filters, the REQ-2.2 utilises parallel resonant circuits in a clever configuration whereby the bandwidth (Q) of the circuit can be adjusted like an active filter, but without any complex relay switching. The inductor/capacitor resonant "tank" circuit runs at a low internal signal level which avoids any inductor saturation effects. The overall result is the sound of real choke based filters with a big open sound, but without the limitation of only a few - or no bandwidth selections.

audio path quality

As you would expect, the REQ uses our BE40 True Class A circuits developed for the MA-2.2 microphone amplifier for the best possible audio performance that mastering engineers desire. But sometimes you might need a bit more color, so we have included a saturation section that introduces measured amounts of low frequency harmonic distortion via a steel audio transformer driven by a single ended tansistor amplifier. The High Pass Filter is placed in the beginning of the eq chain and the Low Band eq section is placed last in the chain. This layout produces the best overall equaliser coherency.

operational beauty

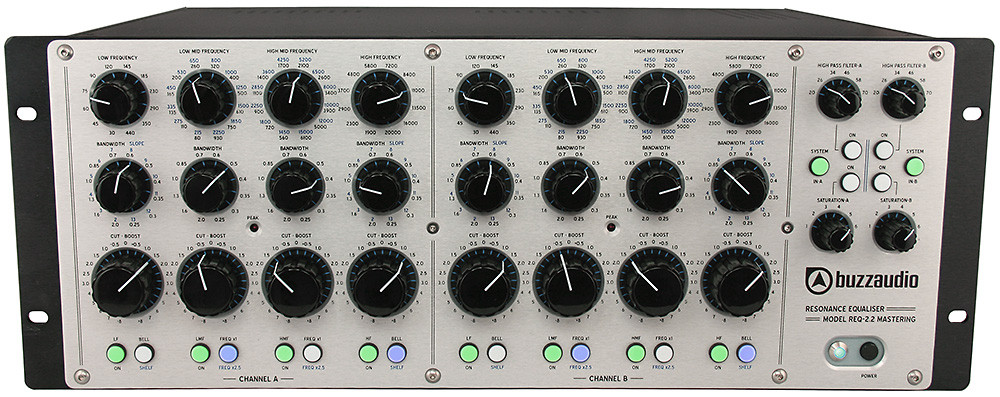

The large knobs and positive feel of the switching make the REQ a pleasure to operate and everything is visually clear when mounted into a console. In total there are 72 frequency choices per channel with overlapping selections across the four bands so you can always find the centre frequency you are looking for. A looping line XLR input and two parallel XLR outputs provide flexible connection options in the mastering control room. Finally, the brushed aluminium low glare rustic silver finish and retro Elma knobs give the REQ an impressive look in your rack!

controls and functions

Each eq band has a 12 position switch to select the Frequency and another that selects the Bandwidth of the bell shape curve (Q) which is adjustable from 1/3 octave to 2 octaves wide. On the High and Low bands, the Bandwidth control reverts to shelf Slope control when Shelf mode is selected via the push button switch. The Low and High Mid bands frequency range is changed to alternative selections when the Freq x2.5 mode is selected. Each band also has an in/out switch. The mastering version Boost/Cut control is a 23 postion Elma switch with a range of +/-8dB. The recording version is fitted with a Alps center detent pot with a range of +/- 15dB.

On the right side of the front panel are the High Pass Filter and Saturation controls with their own in/out switches. The overall System in/out controls and the power switch complete the picture. The channel A and channel B push button switches in this section can be grouped by holding down any switch for 5 seconds. This means for stereo work you only need to push either the channel A or B switch to change both channels simultaneously. (This feature only applies to units with serial number Q1110 and up).



Warranty Information

standard product warranty

Buzz Audio guarantees the Product to be free of defective materials and/or workmanship for a period of 1 year (12 months) from the date of sale, and will replace defective parts and repair malfunctioning Products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory (or duly authorised service centre) via prepaid transportation with a copy of the proof of purchase, ie, sales receipt. This warranty provides that examination of the returned Product must indicate, in our judgement, a manufacturing defect. This warranty does not extend to any Product that has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. The standard warranty is not transferable to a new owner should the Product change hands during the 1 year period.

product warranty extension

The Standard Product Warranty may be extended to a period of 2 years (24 months) from date of sale provided the Product is registered with us within 4 weeks (28 days) from the purchase date. The extended warranty is transferable to a new owner should the product change hands within the 2 year period.
